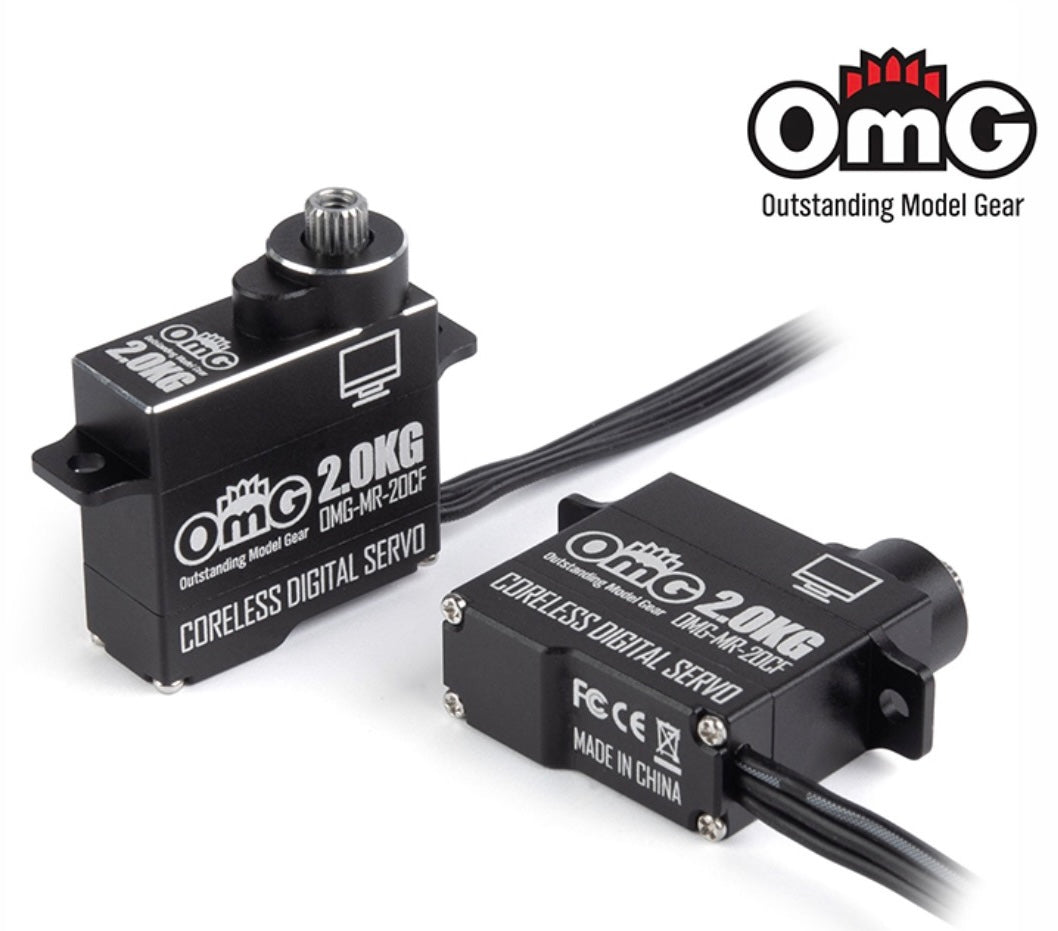

OMG digital servo OMG-MR-20CF
OMG digital servo OMG-MR-20CF
Couldn't load pickup availability
Micro size 3kg full metal programmable coreless digital servo with JST1.5 connector plug for mini-z ro car Gear: Titanium
Dimension:20X8X18.8 Micro size (mm)
|
Operating voltage:4.8-8.4V |
|
|
Operating speed: |
Stall torque: |
|
4.8V-0.072sec/60° |
4.8V-2.0kgf.cm(28oz-in) |
|
6.0V-0.065sec/60° |
6.0V-2.2kgf.cm(31oz-in) |
|
7.4V-0.055sec/60° |
7.4V-2.5kgf.cm(35oz-in) |
|
8.4V-0.050sec/60° |
8.4V-3.0kgf.cm(42oz-in) |
Gear material:Titanium
Horn gear spline:20T
Size:0.79x0.31x0.74in
Case material:Full metal
Weight:0.25oz
Bearing:Metal bearing
Motor type:Coreless
Operating temperature:-15°C~+70°C
Operating travel :=180=10°
Neutral position :1520usec
Frequency: 1520uS
Refresh rate:333Hz
Pules width range :500-2500usec
Dead band width:2usec
Connector wire length:60mm
Waterproof level:Dust & Water Splash Resistacne
Programmable: Yes
